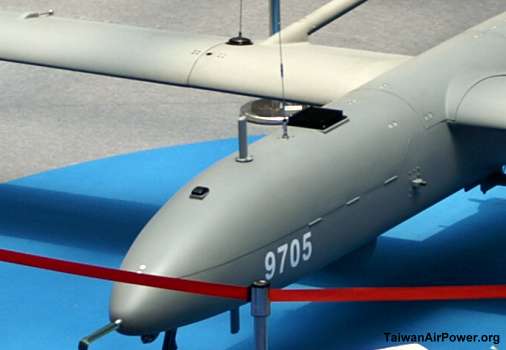

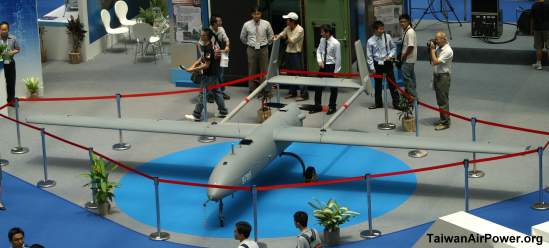

On top of the forward fuselage are the GPS antenna (black), C-band datalink antenna (gray), and U-band backup datalink antenna (the thinnest one).

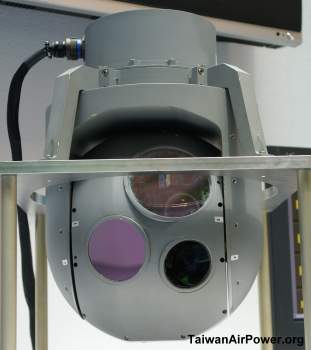

Another C-band antenna is located on the lower side. The eye of the UAV, the EO/IR gimbal is in the middle.
The arresting hook is only used for emergency landings.

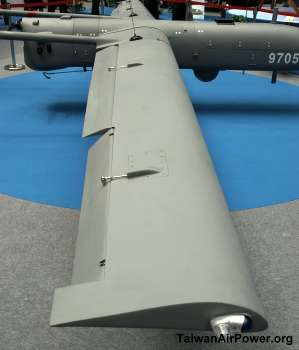

Control surfaces on the wing.

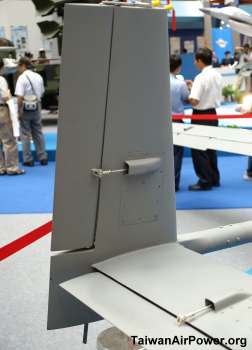

The actuator on the vertical stabilizer is not very different from those found on R/C models.

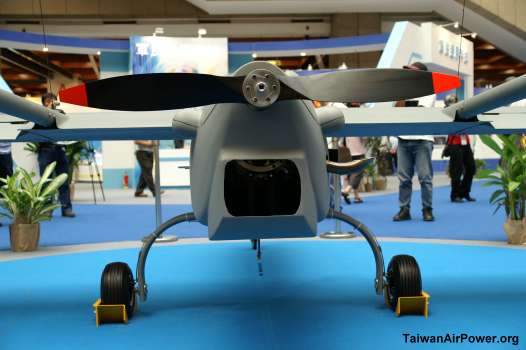

The engine is located at the rear end of the fuselage.
There is a communication relay antenna on top of each wing.
Chung Shyang UAV’s EO/IR gimbal is developed by CSIST. It is believed to be based on an Israeli model.

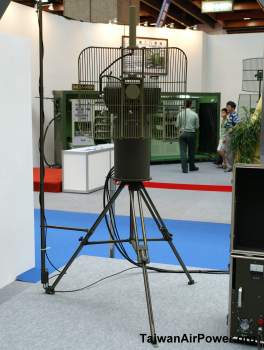

The Remote Video Terminal (RVT) consists of the datalink antenna, the power supply, and the portable control station. This is the antenna.

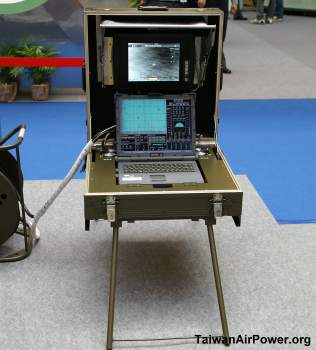

The portable control station is composed of a video display and a control computer.

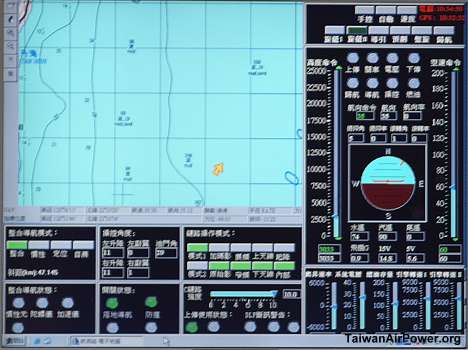

The sreen of the control computer.

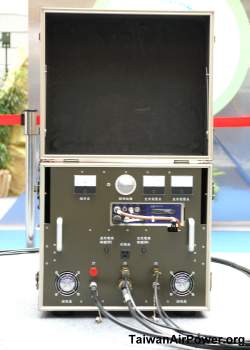

RVT’s power supply.

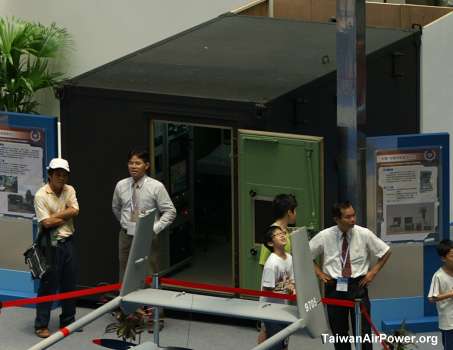

Photographing the inside of the Ground Control Station (GCS) is not allowed. So all you can see here is a big green box.
