I was surprised by the number of viewers drawn by the post F-5’s New Paint Scheme?. It seems many people are still interested in this veteran aircraft. So I am posting some photos of instrument panels of late-model F-5E/F.
Note that AirForces Monthly in UK had a feature on the F-5 in the May 2006 issue. Its Editor, Alan Warnes, is working his way to come to Taiwan to pay a visit to ROCAF and see the F-5. If everything goes right, he will be here in the summer.
So here are the photos… (Click on each image to see the fullsize one.)

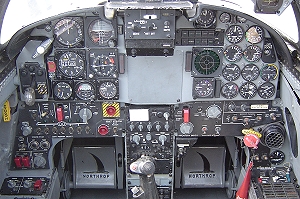

Late-model F-5E instrument panel.
Also late-model F-5E. Although the aircraft is flightworthy, its radar is either removed or inoperable.

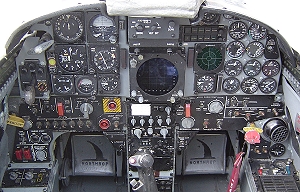

Front seat of F-5F.

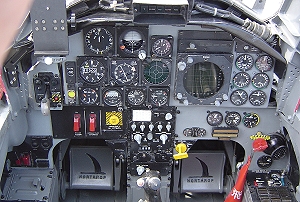

Rear seat of F-5F.
